Illumination for Stereo Microscopy
SCHOTT offers a complete portfolio in fiber optic and direct LED illumination to provide the most suitable contrasting solutions.
Catalog Number 17374323
Catalog Number 16657105
Catalog Number 15499763
Pioneering. Responsibly. Together. These attributes have characterized SCHOTT, global manufacturer of specialty glass, glass-ceramics and other innovative materials, for over 130 years. As #glasslovers and inventor of specialty glass, we are reliable partners for high-tech industries to enable new market launches and applications. Our goal is to become climate neutral by 2030.

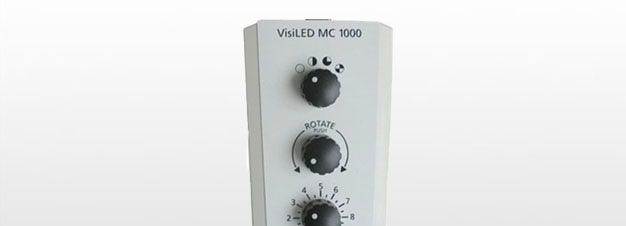

The VisiLED Controllers are the core of the VisiLED system to control the LED light heads
The Daylight Filter for Halogen Light Sources Increases the color temperature from a warm halogen light to a cold daylight. For use with focusing lens with 5 mm diameter light guide and KL1500HAL Cold Light Source.
Provides optimal lighting for contrast while reducing shadows. Mounts directly to objective by means of thumb screw. For use with Cold light source KL300LED
Fiber optic flex and stay light guide in a black lacquered semi-rigid gooseneck tubing and fiber optic flexible light guide in a black metal-PVC jacketing.
Fiber optic flex and stay light guide in a black lacquered semi-rigid gooseneck tubing.
Diameter (English) | 0.4 in. |
---|---|
Dimensions (L x W x H) | 4.5 mm Fiber Bundle Diameter |
Length (Metric) | 600 mm |
Diameter (Metric) | 11 mm |
Length (English) | 23.6 in. |
Diameter (Metric) Inner | 4.5 mm |
Material | Optical glass fibers |
Length (Metric) Arm Reach | 600 mm |
Fiber optic flex and stay light guide in a black lacquered semi-rigid gooseneck tubing.
Length (Metric) | 500 mm |
---|
The VisiLED Controllers are the core of the VisiLED system to control the VisiLED light heads.
For Use With (Equipment) | VisiLED Ringlights or Transmitted Light Stage |
---|---|
For Use With (Application) | Stereo Microscopy Illumination |
The Mounting Bracket allows ergonomic operation of Easy LED Spotlight and KL300LED. Connect directly to the microscope via column-adapter.
For Use With (Application) | Stereo Microscopy Illumination |
---|
Use the Diffuse Light Panel for Fiber Optic Flexible Light Guide for illumination of polished or high reflective surfaces. Additional flexible light guide required (155103 or 155104).
The 6-Point Ring Light provides optimal lighting for contrast while reducing shadows. Mounts directly to objective by means of thumb screw. For use with cold light source KL300LED.
The VisiLED polarizer set is specially designed only for use with the VisiLED brightfield ring light. Due to its cutting edge polarization filters, this set provides a large improvement compared to other polarization tools.
This Power Supply provides power for VisiLED System. Includes 100-240 VAC.

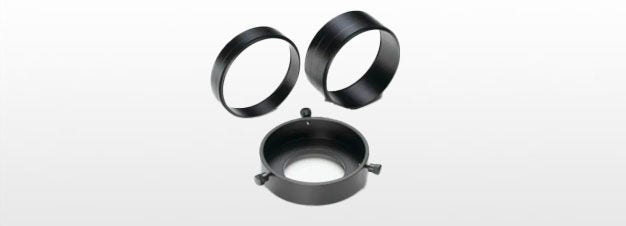

Combi-kit, adapter set for objective working distances 30 to 110 mm.
Base Stand to use with articulated arm (158345) or mounting bracket (120250).

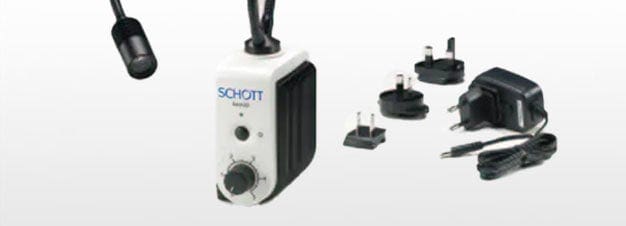

The EasyLED Spotlight Plus is an ergonomic and compact LED spot illumination system for stereo microscopy and macroscopy. Power supply included.
Includes | Power supply |
---|---|
Range (Lux) | 130 lm |
Dimensions (L x W x H) | 61 x 114 x 107 mm Control Unit |
Length (Metric) | 500 mm (incl. light head) |
Lamp Life | 50,000 Hours |
For Use With (Equipment) | Mounting Bracket |
Bulb Type | LED |
Voltage | 100/240 V |
Frequency | 50/60 Hz |
Certifications/Compliance | CE |
For Use With (Application) | Stereo Microscopy Illumination |
